Khoom Taw Qhia
- Nws txhawb nqa ob qho tib si kev cuam tshuam thiab tsis yog - qauv ntsuas qhov cuam tshuam, nrog kev ntsuas qhov ntev ntawm 2,600 meters thiab 200 meters, raws li, thiab qhov ntsuas qhov tseeb ntawm 5 vib nas this.
Nruab nrog lub cim laser beam coaxial tsom qhov system uas ua haujlwm lub laser beam mus rau ib lub voj voog nyob rau hauv nruab nrab ntawm crosshair daim phiaj.
Lub hom phiaj yeej ib txwm nyob ntawm qhov tseeb, thiab qhov ntsuas qhov deb tseem muaj tseeb txawm hais tias lub hom phiaj txoj hauj lwm, nrog rau cov txheej txheem sib txawv tsis cuam tshuam los ntawm lwm yam khoom hauv kab pom (xws li cov ceg ntoo lossis laj kab mesh).
Ib daim duab loj LCD ua kom yooj yim thiab intuitive ua haujlwm.
Cov ntaub ntawv ntawm cov zaub tseem pom tau meej meej txawm tias nyob hauv lub teeb ci, thiab lub teeb pom kev zoo ua rau nws tsim nyog rau qhov chaw ua haujlwm nrog kev pom tsis zoo.
Dedicated "shortcut keys" tso cai rau kev nkag tau sai rau cov cuab yeej siv feem ntau siv. Kev ua haujlwm tau zoo dua qub los ntawm kev kho qhov siab ntawm qhov ntsuas qhov siab, ntsuas qhov siab, thiab hloov pauv ntawm cov qauv ntsuas sib txawv.
Nruab nrog cov khoom tshwj xeeb coding system. Txhua tus yuam sij tuaj yeem raug xa mus rau ib tus lej tshwj xeeb, thiab lub cuab yeej cia li khaws cov ntaub ntawv raws li cov cai tom qab ntsuas qhov taw tes.
Nws nta ib qho loj ua tau -hauv lub cim xeeb muaj peev xwm tsim tau txog 32 txoj haujlwm thiab khaws cia txog 10,000 cov ntsiab lus.
Nws qhov tshwj xeeb software system ua rau ntawm - qhov chaw daws teeb meem ntawm ntau yam kev tshawb fawb engineering thiab koom tes ua haujlwm geometry.
Khoom Parameter (Specification)
| Parameter | Tus nqi |
| Angular raug | 5″ |
| Field of View (objective) | 1℃20′ |
| Reflectorless ntau yam | Mus txog 200 m |
| Reflectorless nrug qhov tseeb | ± (3 hli + 3 ppm) |
| Magnification | 30× |
| Compensator ua haujlwm ntau yam | ±3′ |
| Zaub | duab, 128 × 64 pixels |
| Lub sijhawm ua haujlwm | 4.5 h nruam ntsuas / 11 h ntsuas txhua 30 s |
| Qhov ntev | 168 hli × 173 hli × 355 hli |

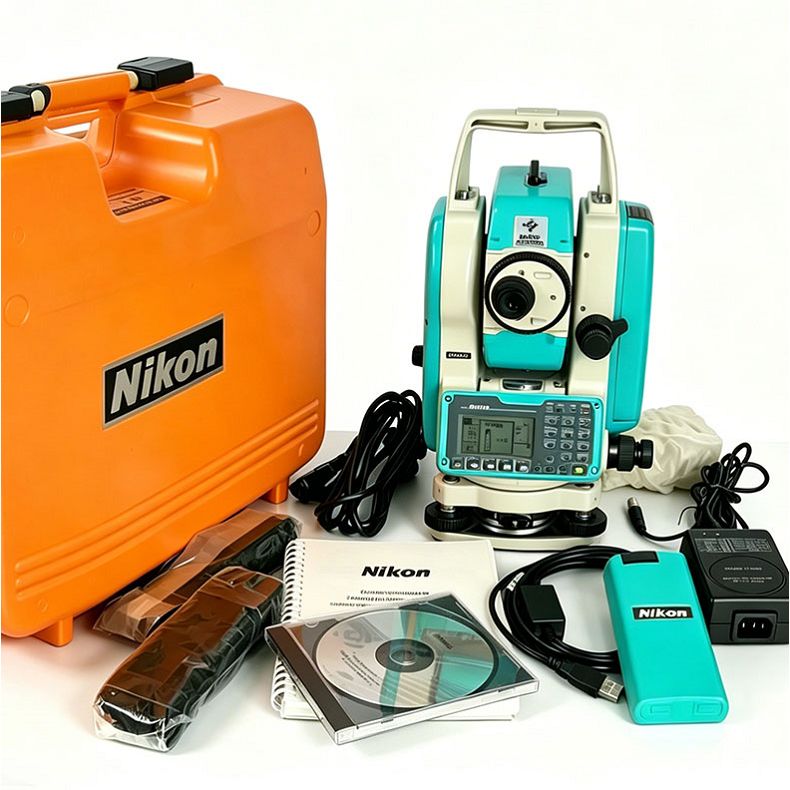

| Cov khoom xa tuaj | Tag nrho cov chaw nres tsheb, nqa cov ntaub ntawv, charger, ob lub roj teeb, USB cov ntaub ntawv cable, pov thawj pov thawj |
| Lub hom phiaj txoj kab uas hla | 45 hli |
| Duab | Upright (zeeg) |
| Ntau yam nrog ib qho prism | 2600 m |
| Prism nrug qhov tseeb | ± (2 hli + 2.0 ppm) |
| Kev tiv thaiv plua plav / dej | IP55 |
| Compensator raug | 1.5″ |
| Lub peev xwm nco | Txog li 10,000 ntsiab lus |
| Ua haujlwm kub | -20℃rau +50 degree |
| Qhov hnyav | 5kg ua |
| Warranty | 6 lub hlis (yam tsawg kawg nkaus) |
Khoom Feature Thiab Daim Ntawv Thov
Nikon NPL 332 yog qhov tsim nyog rau kev soj ntsuam ntawm cov chaw tsim kho, tsim cov kev tshawb fawb sib txuas, thiab ntsuas qhov contours ntawm tunnels, txuas hniav, lub tsev facades, thiab nyuaj -} mus txog - cov khoom, nrog rau kev ua hauj lwm ntawm cov neeg coob coob thiab txoj kev loj. Cov xov tooj hluav taws xob tag nrho cov chaw nres tsheb no yog qhov tsis yog - qhov cuam tshuam ntawm DTM series, uas tau ua pov thawj nws qhov kev ua tau zoo hauv kev xav tau ntawm thaj chaw.
· Ceev- hloov chaw;
· 10,000-point cia peev;
· Roj teeb lub neej ntev;
· Graphic zaub nrog alphanumeric keypad;
· Yooj yim configuration tswj;
